Repeaters, Links and Hubs Facilitate cabling by interconnecting multiple NIMs

ARCNET

MODHUB Series

Compatible with baseband 2.5Mbps ARCNET® network

Number of Ports Supported: Up to 16 in four slots

Mixes coaxial, twisted-pair, and glass fiber optic cable in one hub

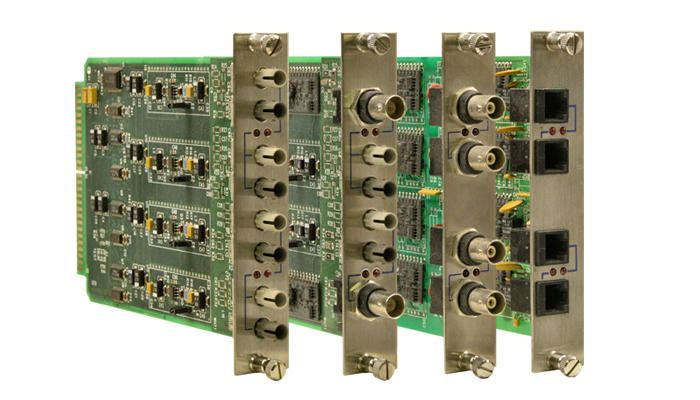

EXP Series

Combatible with the basband 2.5 Mbps ARCNET® network

Supports star or distributed star topologies

Works with MOD Hub Series active hubs

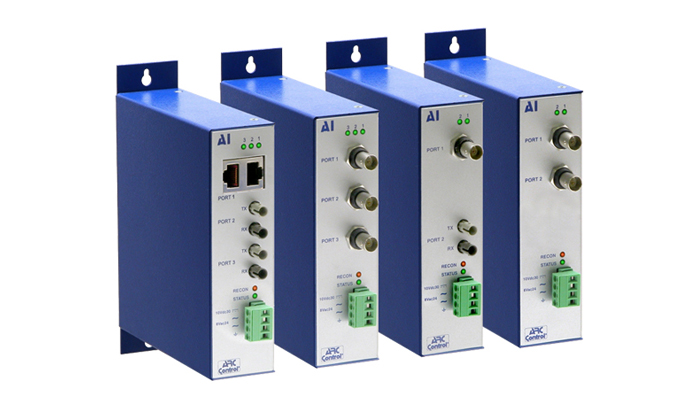

ARCNET Interconnect (AI) Series

Compatible with the baseband ARCNET® network

Number of Ports Supported: 2 or 3

Variable data rates from 78 kbps to 10 Mbps

AI-FR Series

Compatible with the baseband ARCNET® network;

Two ports for ring connection and one port for drop connection

2.5 Mbps data rate

AI-USB Series

Functions as both a hub and USB interface to the ARCNET® network

Seonds/receives ARCNET® packets to/from a USB-connected computer

Two external hub ports for expansion

QuickLink Series

Compatible with the baseband 2.5 Mbps ARCNET® network

Supports coaxial and twisted-pair cabling

Minimizes bit jitter with precision delay-line timing
