Network Interface Modules Available for all the popular commercial bus structures

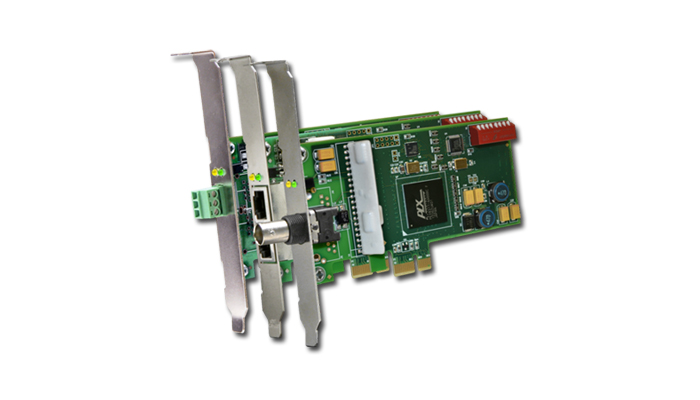

PCI20EX, PCI Express ARCNET Card
Bus Compatibility: PCI Express, x1 Lane
Controller Chip: COM20022
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Coaxial Star, Twisted Pair Bus

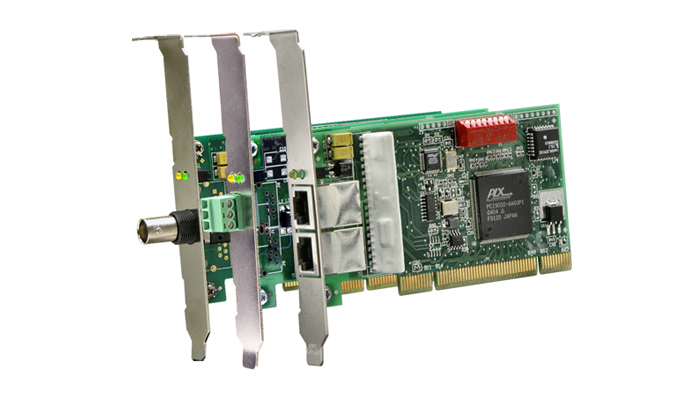

PCI20U Series, PCI Bus Compatible
Bus Compatibility: PCI, PCI-X
Controller Chip: COM20022
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Coaxial Star, Twisted Pair Bus
USB22 Series, USB Compatible
Bus Compatibility: USB 1.1, USB 2.0
Controller Chip: COM20022
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Twisted Pair Bus

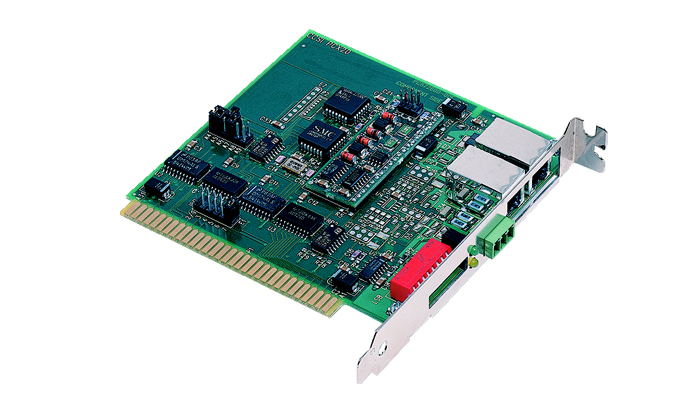

PCX20 Series, ISA Bus Compatible
Bus Compatibility: 8-Bit ISA
Controller Chip: COM20020
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Coaxial Star, Twisted Pair Bus

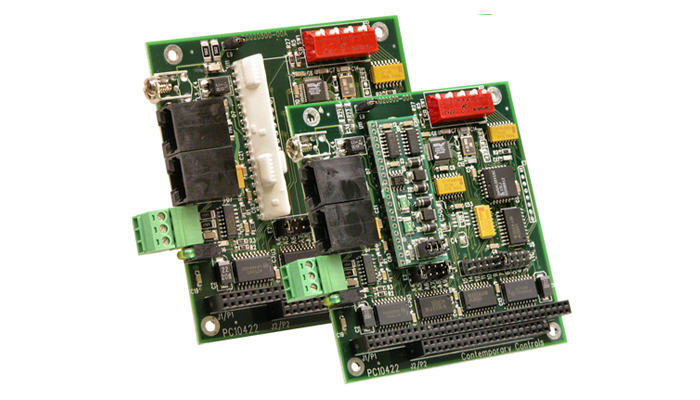

PC10422 Series, PC/104 Bus Compatible
Bus Compatibility: PC/104
Controller Chip: COM20022
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Coaxial Star, Twisted Pair Bus

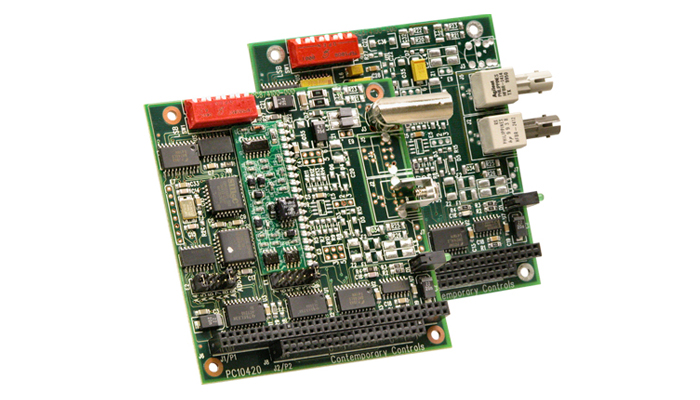

PC10420 Series, PC/104 Bus Compatible
Bus Compatibility: PC/104
Controller Chip: COM20020
Physical Layer: AC-coupled EIA-485, DC-coupled EIA-485, Coaxial Bus, Coaxial Star, Twisted Pair Bus
