BAScontrol-E36 VAV Air-Handler Edge Controller

Product Overview

The BAScontrol-E36 VAV Air-Handler Edge Controller is based on the design of the RTU38 Advanced Rooftop Controller which is intended for energy optimization utilizing advanced control sequences in rooftop units. The two products differ in I/O count and mix, with the BAScontrolE36 designed for the requirements of ASHRAE Guideline 36-2018 High-Performance Sequences of Operation for HVAC Systems (GL-36), while the RTU38 was designed for the specific needs of the OEM.

The BAScontrol-E36 has the necessary computing power and input/output (I/O) point count to execute recommended advanced sequences published in GL-36. Both the RTU38 and BAScontrolE36 utilize the same Advanced Controller Codebase (ACC), developed by Contemporary Controls, consisting of BACnet for protocol, and Sedona for control running on a Linux platform. Included in the BAScontrolE36 controller's codebase are edge-connected features such as a cloud connector to Azure IoT Central, a JavaScript Object Notation (JSON)-node programable dashboard, email alarming and notifications, and access to an online weather service.

Versatile Monitor or Controller Device

• BACnet/IP and BACnet MS/TP client/server
• BACnet B-ASC device profile
• Web page configuration
• Sedona Programmable
• Programmable with free BAScontrol Toolset
• Configurable with a common web browser
• Built-in 10/100 Mbps Ethernet two-port switch
• Wi-Fi Connectivity (external USB to Wi-Fi adapter required)
• NTP or manually settable real-time clock
• COV subscriptions — a mix of 230 binary or analog
• Azure IoT Central connector
• JSON-node dashboard
• Email alarms and notifications
• Built-in API to openweathermap.org
• Wide operating temperature range of -40°C to +75°C

Product Details

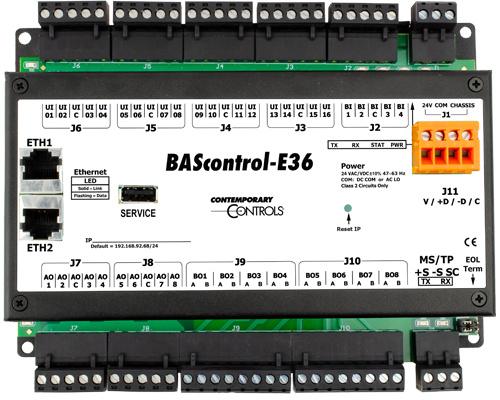

The BAScontrol-E36 is a 36-point edge controller which supports BACnet/IP client/server operation using a 2-port Ethernet switch connection or over BACnet MS/TP using a serial port. The controller complies with the B-ASC device profile having a convenient mix of sixteen universal inputs, four binary inputs, eight analog outputs, and eight binary outputs. The BAScontrol-E36 uses screw terminal block connectors.

The device is fully web page-configurable, and freely programmable using Sedona's drag-and-drop programming methodology of assembling components onto a wiresheet to create applications. The unit can be programmed using the Sedona Application Editor (SAE) in Contemporary Controls' free BAScontrol Toolset. Rugged design, low profile, and wide temperature operation make it suitable for indoor or outdoor use.
