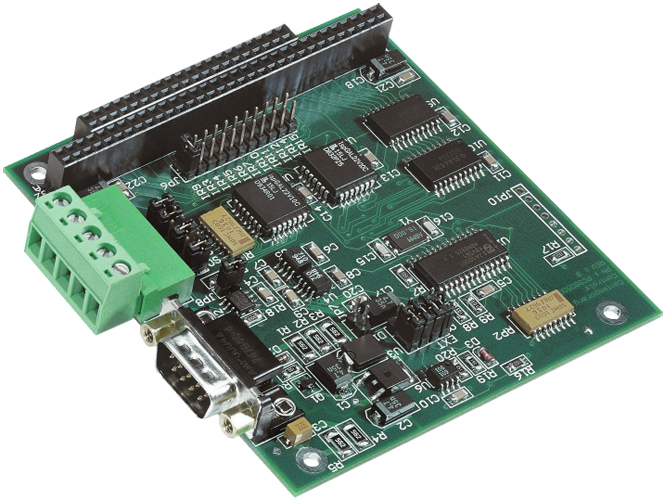

CAN104 Interfaces PC/104 Computers to the CAN Network

Product Overview

  • Interfaces CAN to PC/104 compatible computers
  • Highly-featured Philips SJA1000 controller
  • Compatible PCA82C200 mode (defaults to BasicCAN mode)
  • Extended receive buffer (64-byte FIFO)
  • CAN 2.0B protocol compatibility
  • Supports both 11-bit and 29-bit identifiers
  • 16 MHz clock frequency
  • Drivers available for Windows® 98/ME/2000/XP, Linux and DOS
  • Choice of either open-style screw terminals or DB-9 connector
  • Data rates up to 1 Mbps

Product Details

To broaden the company's base in Controller Area Network (CAN technology), the CAN104 adapter was introduced for 16-bit PC/104™ bus computers, supporting the newer SJA1000 controller. The adapter supports 8-bit transfers and takes advantage of the additional interrupts on the expanded bus.

The Philips SJA1000 CAN stand-alone controller chip provides new degrees of functionality for the CAN104 at a low cost. By not incorporating a co-processor, the CAN104 is a cost-effective and high-performance solution for automotive and industrial applications.

The SJA1000 keeps pace with the industry with its many capabilities-more than its predecessor, the older 82C200. It is backward compatible with the 82C200. The 82C200 is restricted to BasicCAN (11-bit identifiers) while the SJA1000 operates in either BasicCAN or PeliCAN which supports the CAN 2.0B specification (29-bit identifiers). The SJA maintains extended frame passivity while in the BasicCAN mode.

This controller chip is designed with a 16 MHz clock, a larger receive buffer and a better acceptance-filtering-including the ability to extend the acceptance mask to the data field. It has the ability to operate at data rates up to 1 Mbps.

The PeliCAN mode has these features: error counters with read/write access; programmable error warning limit; last error code register; error interrupt for each CAN-bus error; arbitration lost interrupt with detailed bit position; single-shot transmission (no retransmission); listen-only mode (no acknowledge, no active error flags); acceptance-filter extension (4-byte mask); and reception of "own" messages (self-reception request).

The CAN104 adapter incorporates the DeviceNet physical layer with optically-isolated transceiver, reverse-voltage and short-circuit protection. Field connectors include the DeviceNet 5-position open-style and DE-9 as defined by CAN in Automation (CiA).

Source code for our DOS driver, written in "C," is available to software developers by submitting an e-mail request to: techsupport@ccontrols.com.

This code supports the PeliCAN mode. To download an application called CAN Talk (similar to a chat program) for demonstrating how the drivers function under DOS or Windows, select the CAN Talk Utility link in the column below.

Open source Linux drivers for the CAN104 can be obtained online by surfing the Internet for SJA1000 drivers.

Ordering Information

Model Description
CAN104-DN SJA1000 CAN PC/104 NIM Contact Us
