Configuring a BASrouter for Multi-Floor BACnet/IP Integration
A typical HVAC installation in a multi-story building often utilizes multiple Fan Coil Units (FCU) or Variable-Air-Volume (VAV) terminal units which are installed in the ceiling on each floor. These units frequently contain BACnet MS/TP controllers that are installed across floors and connected via a shared EIA-485 bus. A large number of devices on the same bus over several floors with concealed wiring makes troubleshooting much more difficult. Adding EIA-485 repeaters compounds the problem.

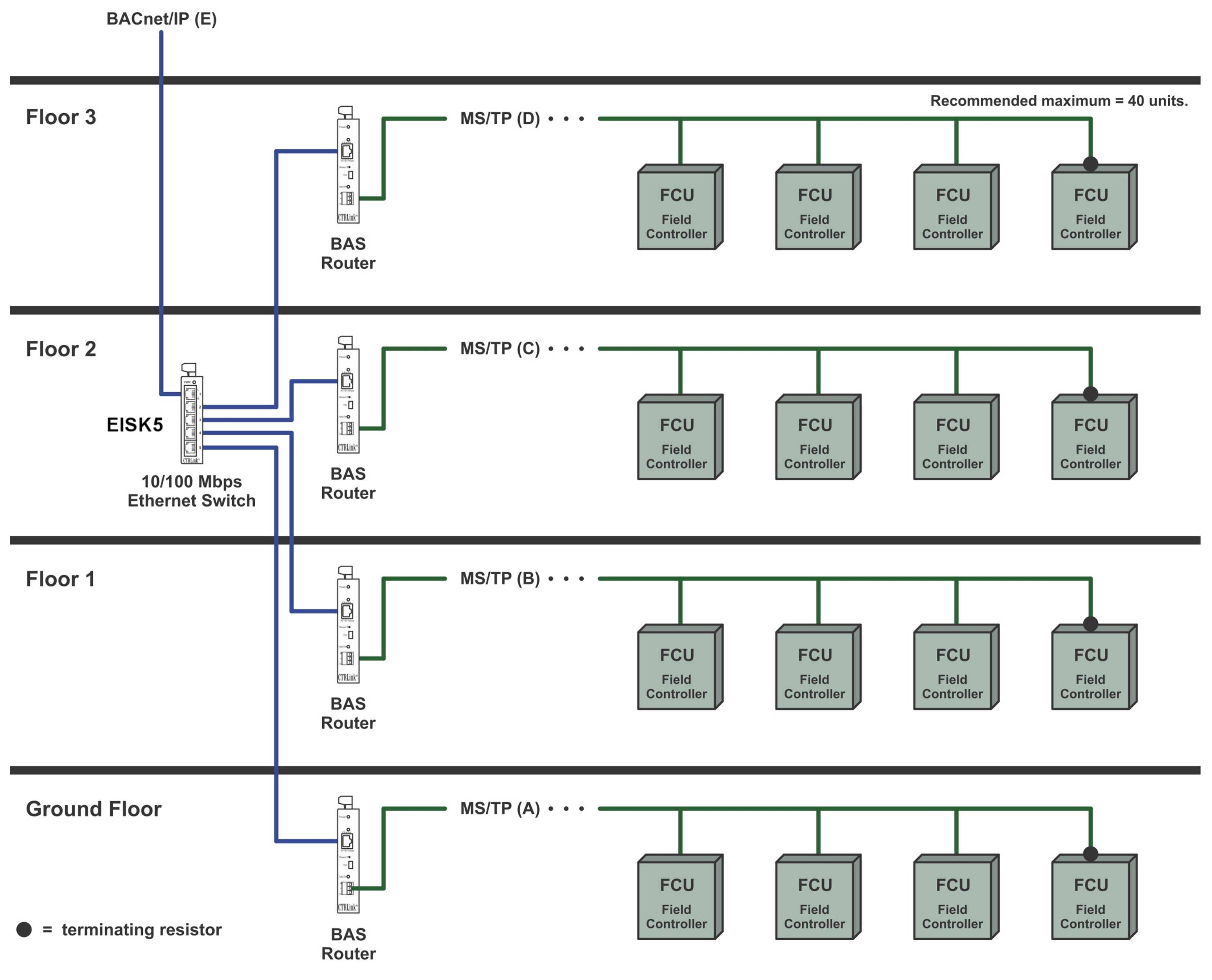

The following example utilizes a dedicated BASrouter on each floor that connects all the control units. This approach eliminates the need for inter-floor EIA-485 wiring, reduces traffic on each MS/TP segment, and simplifies troubleshooting.
To connect field devices on multiple floors:
- Install BASrouter on each floor.
- Connect all MS/TP devices on that floor to the BASrouter's MS/TP port.
- Terminate the far end of the bus with a 120-ohm resistor.
NOTE: The BASrouter features built-in bias and termination—no external is terminator needed. - Connect the BASrouter's Ethernet port to a central Ethernet switch, such as an EISK5 model from our series of Skorpion unmanaged Ethernet switches.
- Configure a cable connection to the centrally-located building or automation controllers that operate over BACnet/IP, BACnet/IP (E), in this example.
MS/TP Configuration:
- Set baud rate on the BASrouter; auto-bauding controllers will follow.
- Each MS/TP segment is treated as a separate BACnet network so each segment must be assigned a unique network number including the BACnet/IP network.
The maximum number of MS/TP devices on each segment is often arbitrary. Assuming that half-load EIA-485 transceivers exist on the field controllers, a reasonable limit would be about 40.
Refer to our BASrouter Application Guide for more details on how to connect control devices on multiple floors and for more examples that explain how our BASrouters can be configured to solve a particular need.
