BASrouter BACnet/IP to BACnet MS/TP

The BASrouter 3.0 from Contemporary Controls has been independently tested and has obtained BACnet Testing Laboratories (BTL) certification. It is BTL listed for both B-RTR and B-BBMD device profiles to ensure seamless integration into BACnet networks. This robust and versatile BASrouter — which provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP — will seamlessly allow system integrators to mix BACnet network technologies within a single network.

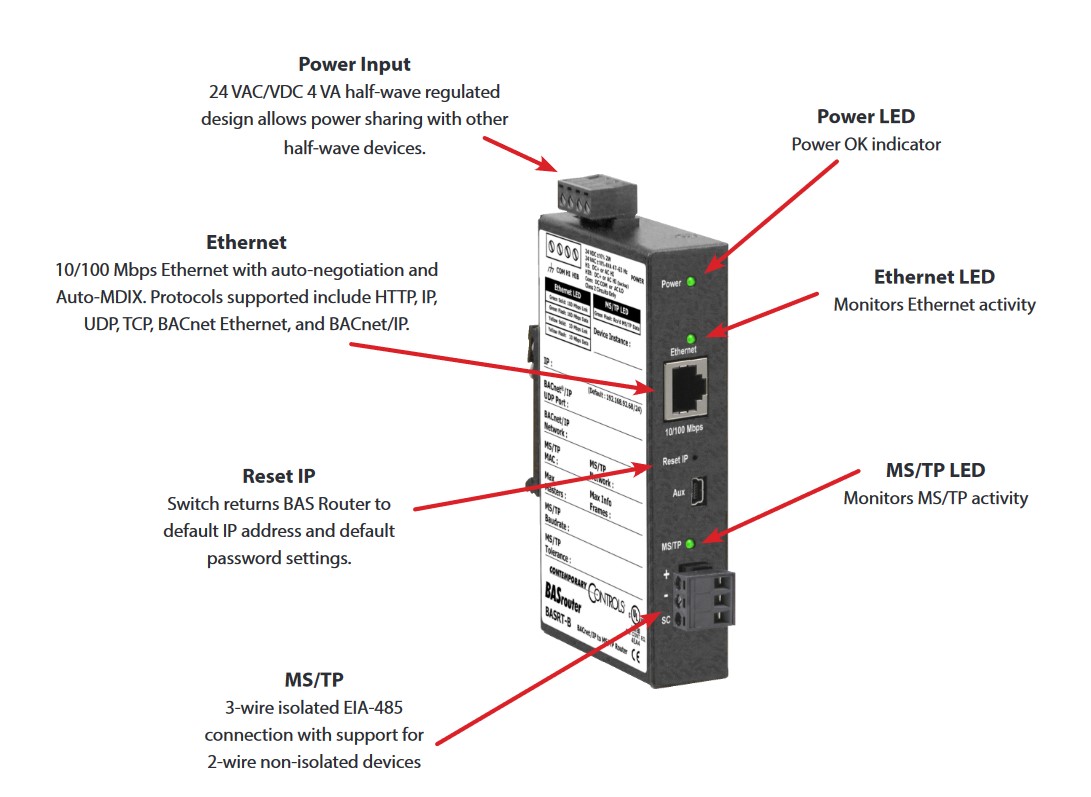

The BASrouter is web page configurable and powered by 24 VAC/VDC. It operates over the full industrial temperature range of −40° to +75°C. It is housed in a metal case that mounts on 35-mm DIN-rail. There is one MS/TP port and one 10/100 Mbps Ethernet port.

Learn More

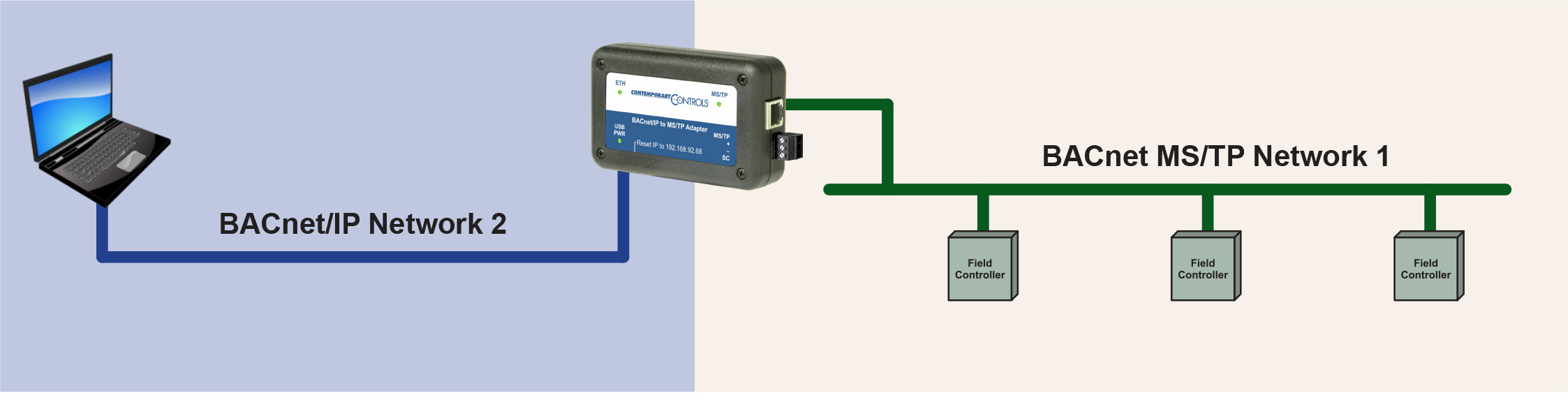

Commissioning BACnet MS/TP using a Laptop Computer

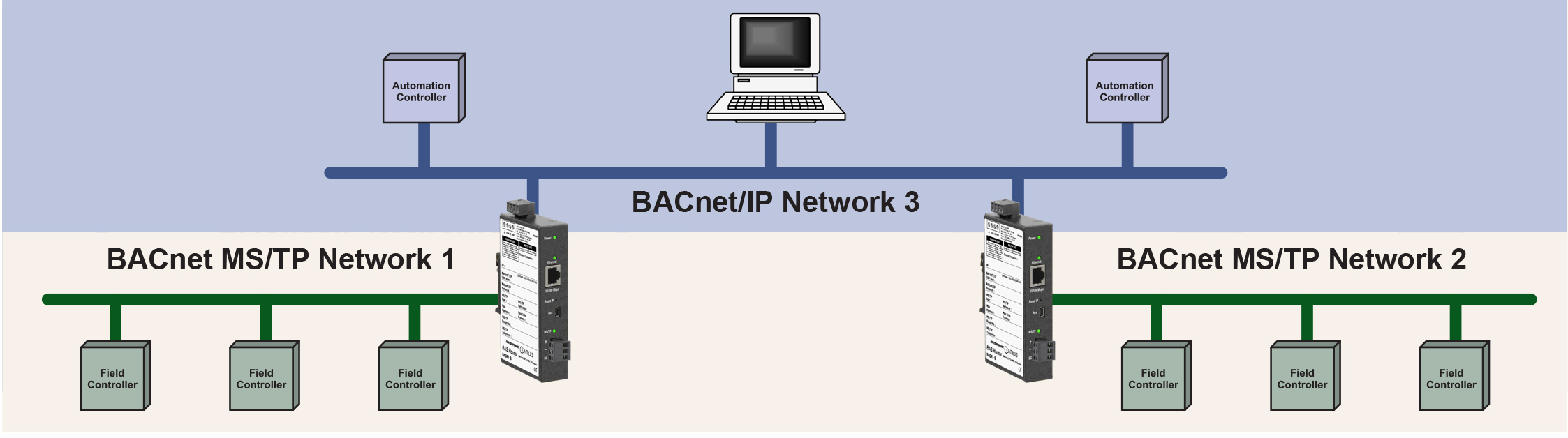

Connecting Together BACnet's Automation and Field Levels

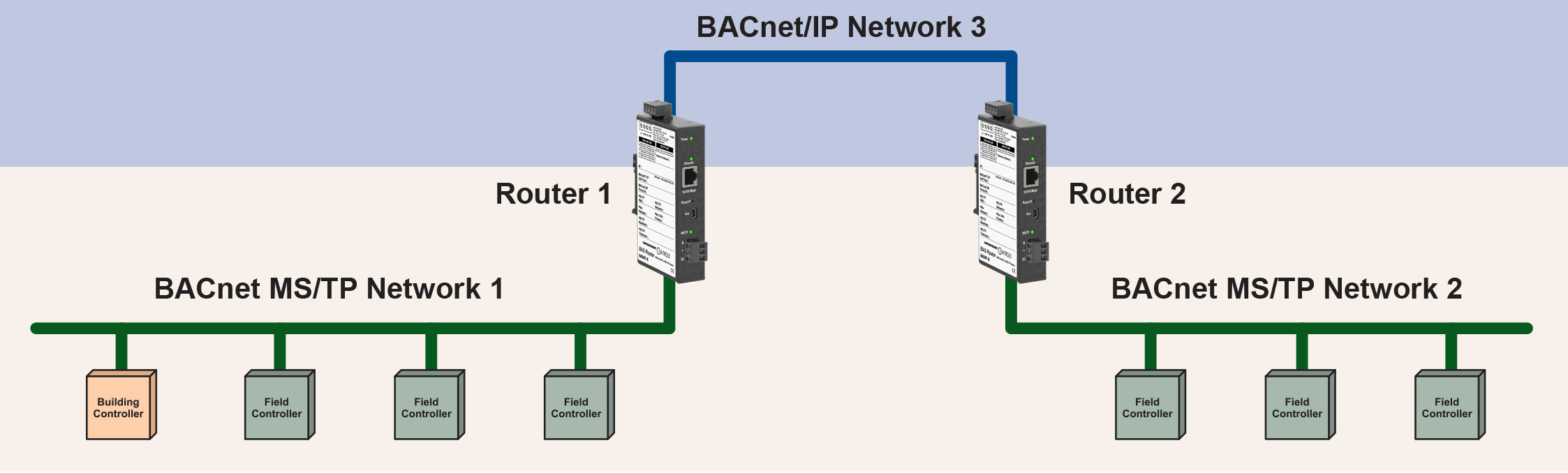

Tunnelling over BACnet/IP

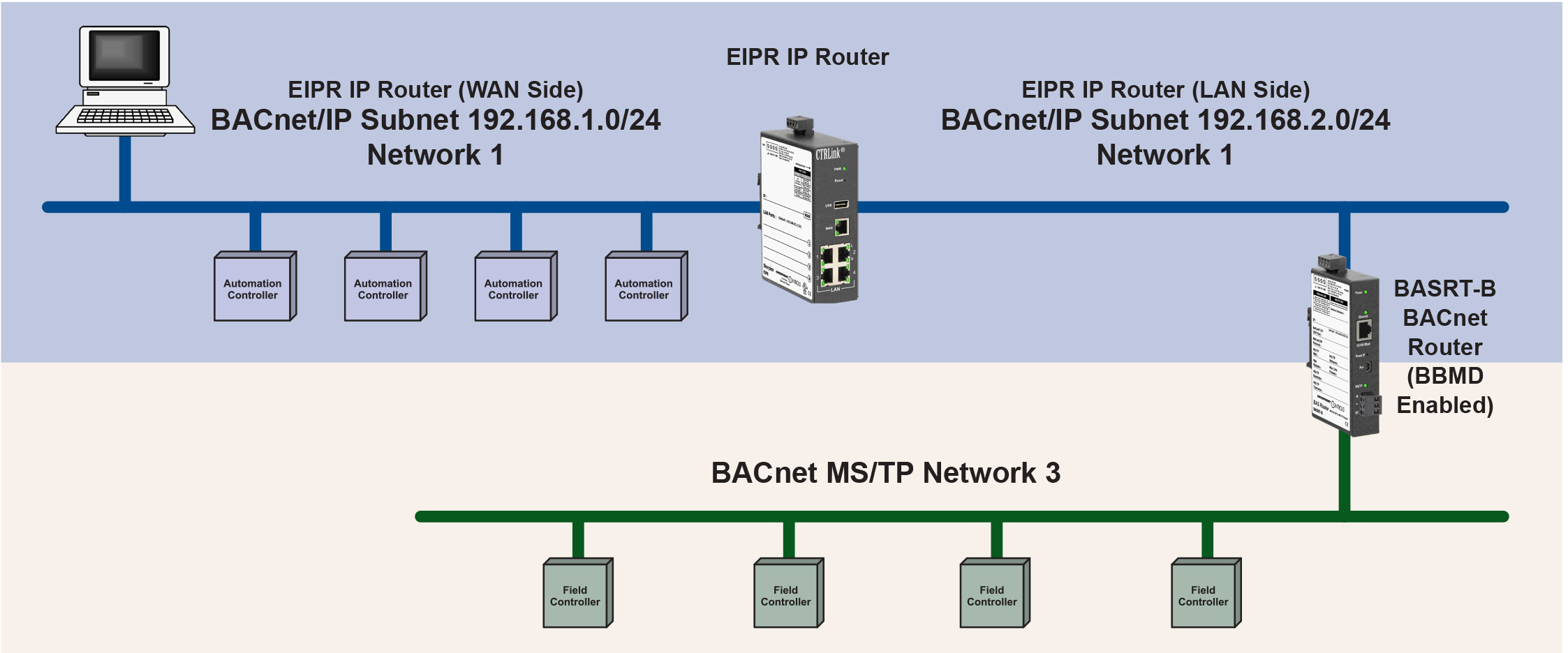

Adding BACnet/IP Automation Equipment to an MS/TP Network

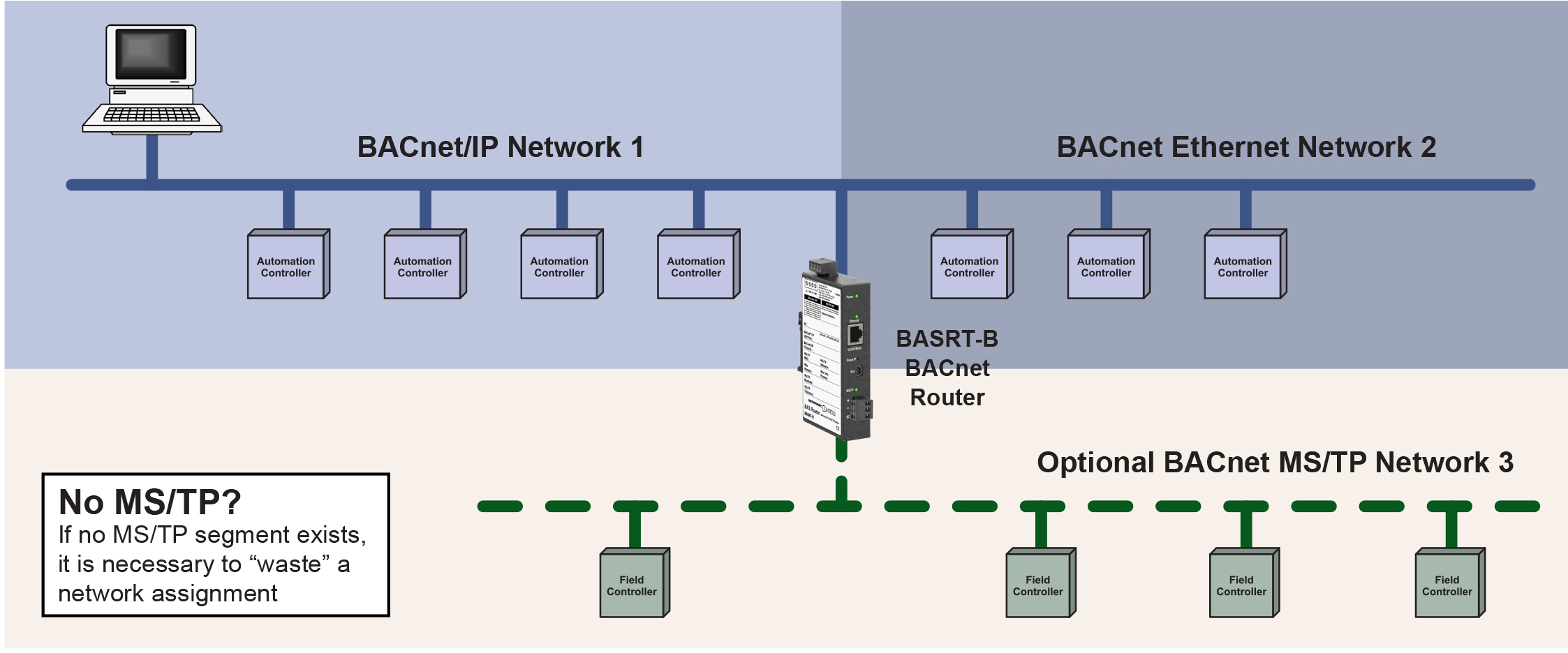

One-armed Router Supporting BACnet Ethernet

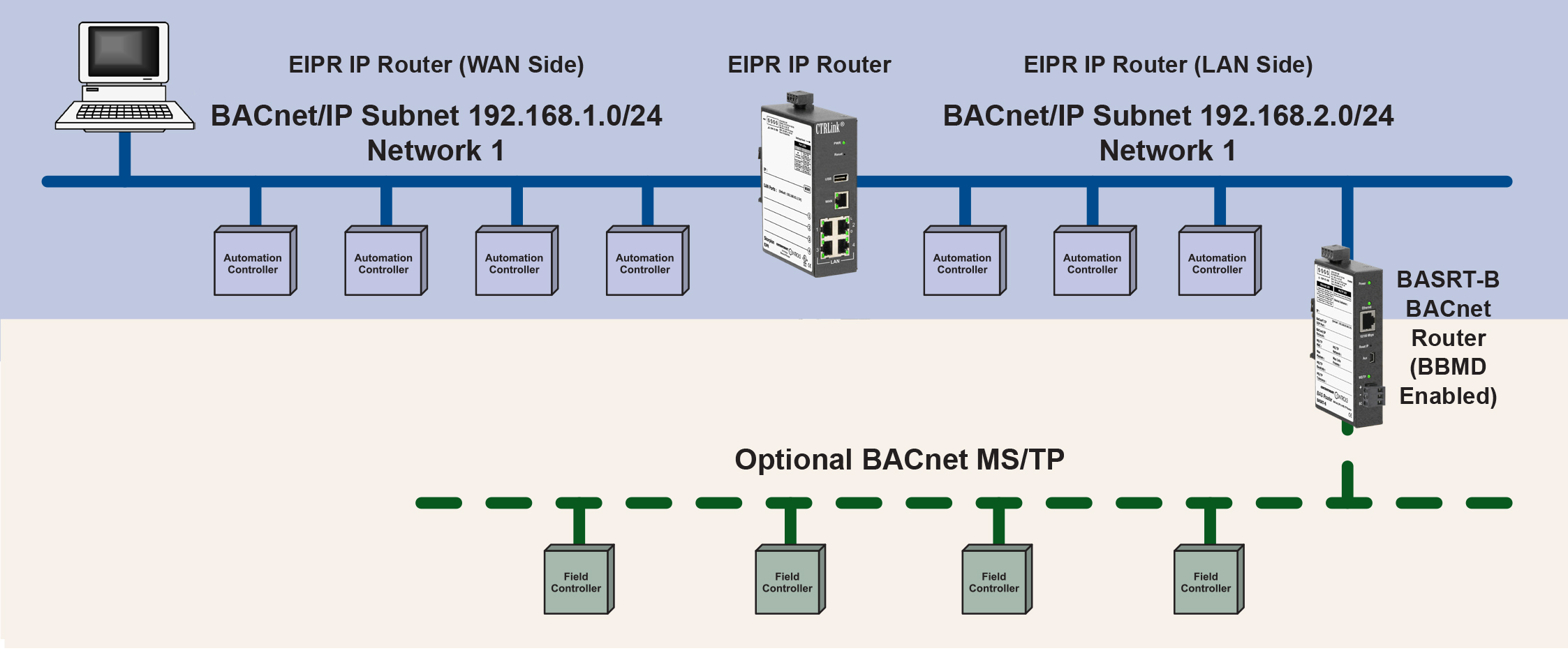

BBMD server without Firewall

BBMD Server with Firewall but No Local IP Devices

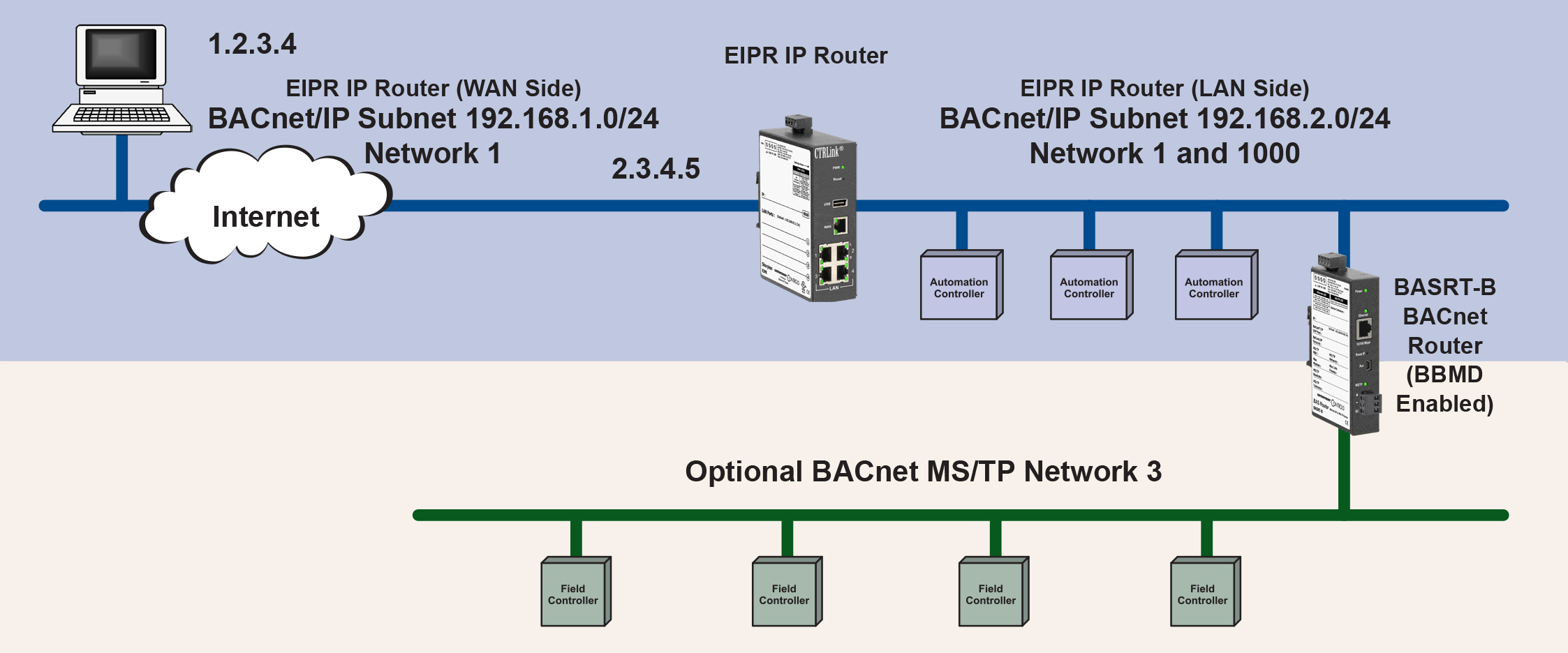

Remote Access to an Existing BACnet/IP Internetwork
